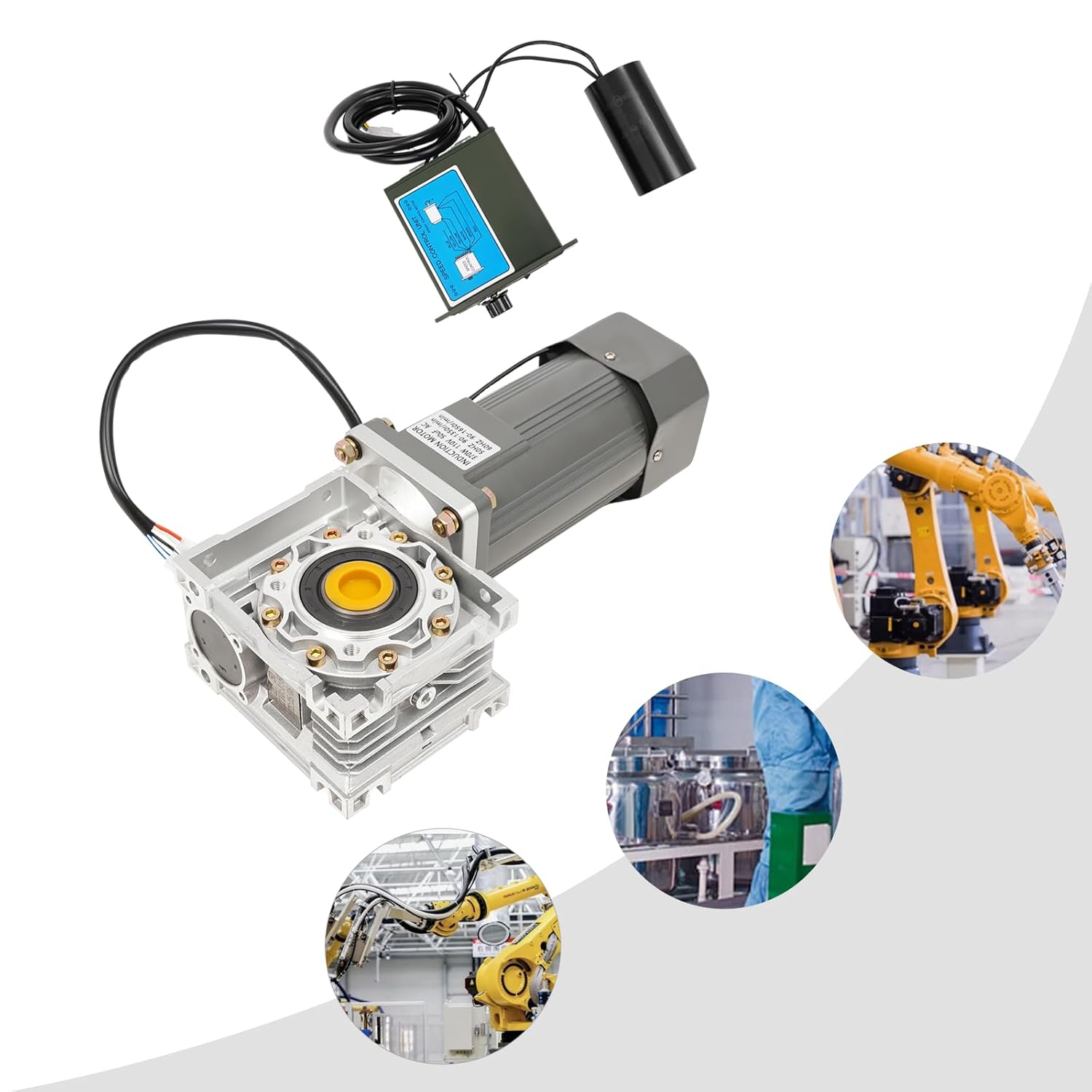

AC 110V Electric Motor Kits Worm Geared Motor with Speed Controller 65NM Torque Gear Motor Reducer for Equipments Machines, 27r/min Maximum Output Speed, 370W 50K

Product parametersAn efficient machine can facilitate your outdoor work and increase your productivity. This high-quality gear motor can be used in many areas. It features copper wire coils to ensure smooth and energy-efficient operation. Its power is 370W, torque is 65NM, and output speed is 27rpm after deceleration, which can meet your different working needs.Model: M370A-501Material: Aluminium Alloy, 40 CR Alloy SteelProcess: Die Casting, Heat Treatment, Ni-tr-id-ingColor: Silver, BlackMotor Type: AC Motor Mount Type: Free StandingPower Source: Corded ElectricVoltage: 110V Power: 370WNoise: About 60dBRated Torque: 65 NMMotor Speed: 50HZ 90-1350r/min, 60HZ 90-1650r/minController Output Speed(After Deceleration): 27r/minWorking Temperature: -10°C-40°C/14°C-104°FReduction Ratio: 1:50Capacitor Wire Length: 18cm/7.09inSpeed Controller Size: 10*9*6cm/3.9*3.54*2.4inReducer Size: 14.4*12*8.5cm/5.67*4.72*3.35inMoter Size: 10.4*10.4cm/4.09*4.09inOutput Aperture Diameter: 2.5cm/0.98inPackage Size: 35.5*15*10cm/13.98*5.91*3.94inGross Weight: 9.6kg/21.16lbsNet Weight: 9.2kg/20.28 lbsPackage Included1*Gear Motor1*Speed Controller1*English ManualNotes1.Please note that a one-speed controller can only control one motor.2.To ensure the normal installation and use of the motor, please confirm the motor model and installation size before purchase.3.If the motor has a small load and is not running for a long period of time, the controller can be adjusted to 50% of full speed. When the motor is heavily loaded and operates continuously for long periods of time, the controller should not fall below 70% of full speed.

• 【High quality】It is mainly composed of aluminum alloy casing and pure copper coil, after heat treatment and ni-t-ri-ding processes, it is sturdy and durable, and can well protect the internal parts. All metal gears, double ball bearings and pure copper coils can reduce friction and temperature during use, thus increasing speed and ensuring stable operation.
• 【Portable Gear Motor】Motor size:10.4*10.4cm/4.09*4.09in; Speed controller size: 10*6*9cm/3.9*2.4*3.5in; Reducer size: 14.4*12*8.5cm/5.67*4.72*3.35in, our compact AC motor allows you to easily carry it to your desired workplace and store it in a smaller space. Reduction Ratio: 50:1(50K); Motor speed: 50HZ 90-1350r/min, 60HZ 90-1650r/min. Controller output speed: 0-27rpm.
• 【Flexible in Use】Includes gear motor and speed regulator, the speed of the motor can be adjusted by connecting the speed regulator and turning the speed control knob to achieve the desired effect, output speed range: 0-27rpm. It is also capable of rotating in both directions, making it ideal for applications that require a change in direction of rotation.
• 【Stable Operation】The sealed structure, tightly connected components, and thicker base ensure smooth operation of the motor. It has many heat dissipation holes at the end to quickly dissipate heat internally. The IP54 protection grade can be very good waterproof and dustproof, to ensure the safety of use.
• 【Wide Application】This AC geared motors with a speed controller is a highly efficient motor control system that enables precise control of motor speed with high-speed stability and dynamic response. Suitable for homes, handcrafts, packaging, printing, construction and other engineering work, as well as advertising, office, instrumentation, sports equipment, stage lighting, transmission, automatic warehouse, parking lot equipment,etc.
